Boards

Gypsum Board

''Tons of Quality''

Sam GypsumTM Board consists of a non-combustible core, gypsum in particular and extra tough paper on both sides of boards. This special extra tough paper makes gypsum board strong and long lasting. DFB Gypsum Board comes in comprehensive range of high quality board, utilizing the best materials coupled with precision engineering to match specific customer requirements that comply with ASTM standards which are tested on ASTM C472, C473, C474 D3763 Semi-Dynamic Method.

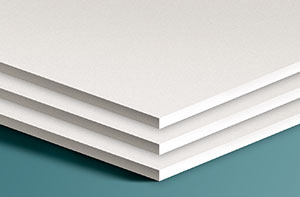

Gypsum Board - Regular

Sam GypsumTM Regular Gypsum Board is an ideal choice for interior walls, partitions and ceilings, which require no special protection from fire or moisture.

Identification
Grey face paper
Brown reverse side paper

Manufacturing Standards
IS 2095 - Part l, 2011

Thermal Conductivity
0.16 (W/m°K )

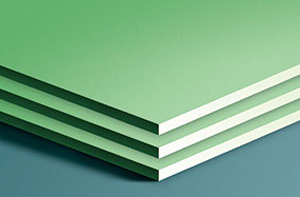

Gypsum Board - Moisture Resistant

Sam GypsumTM Moisture Resistance Gypsum Board is an excellent choice for walls, partition and ceilings, which requires extra protection from moisture. By mixing wax and compound of silicone to the gypsum encased with green facing paper encased to withstand the effect of moisture and high humidity

Identification
Green face paper
Green reverse side paper

Manufacturing Standards
IS 2095 - Part l, 2011

Thermal Conductivity
0.24 (W/m°K )

Gypsum Board - Fire Resistant

Sam GypsumTM Fire Resistance Gypsum Board is superb for walls, partitions and ceilings in the areas, which require special protection from fire. It has been specially developed and tested to meet various fire rated requirements. By adding noncombustible fiber to the gypsum and encased with pink glutinous compressed paper to enhance its strength. Fire Shield gypsum board is highly recommended for areas which requires special protection from fire such as: fire escape stair, computer rooms, elevators, and interior walls in the building.

Identification
Pink face paper
Brown reverse side paper

Manufacturing Standards
IS 2095 - Part l
2011 / BS 476 Class 1 material (Surface spread of flame)

Thermal Conductivity
0.24 (W/m°K )

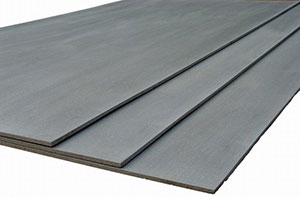

Fibre Cement Board

Sam C-BOARDTM, Brand Fibre Cement Board is a versatile green material, the best substitute to natural wood and wood based products. The product simplicity and embedded beauty with added resistance against moisture, fire and termite makes Fibre Cement Boards a perfect green material.

Identification
Greyish white smooth front surface
Greyish white rough back surface

Manufacturing Standards
IS 14862:2000

Thermal Conductivity
0.21 (W/m°K )

Product Specifications

Thickness Metric Size(mm) Imperial Size(mm) Weight (approx.) kg./sheet 20ft Container Loading
9mm 1200 x 1800 1220 x 1830 15 1400 Sheets
12mm 1200 x 1800 1220 x 1830 19 1050 Sheets
9mm 1200 x 2400 1220 x 2440 20 900 Sheets
12mm 1200 x 2400 1220 x 2440 25 690 Sheets

*15mm

1200 x 2400 1220 x 2440 32 580 Sheets
